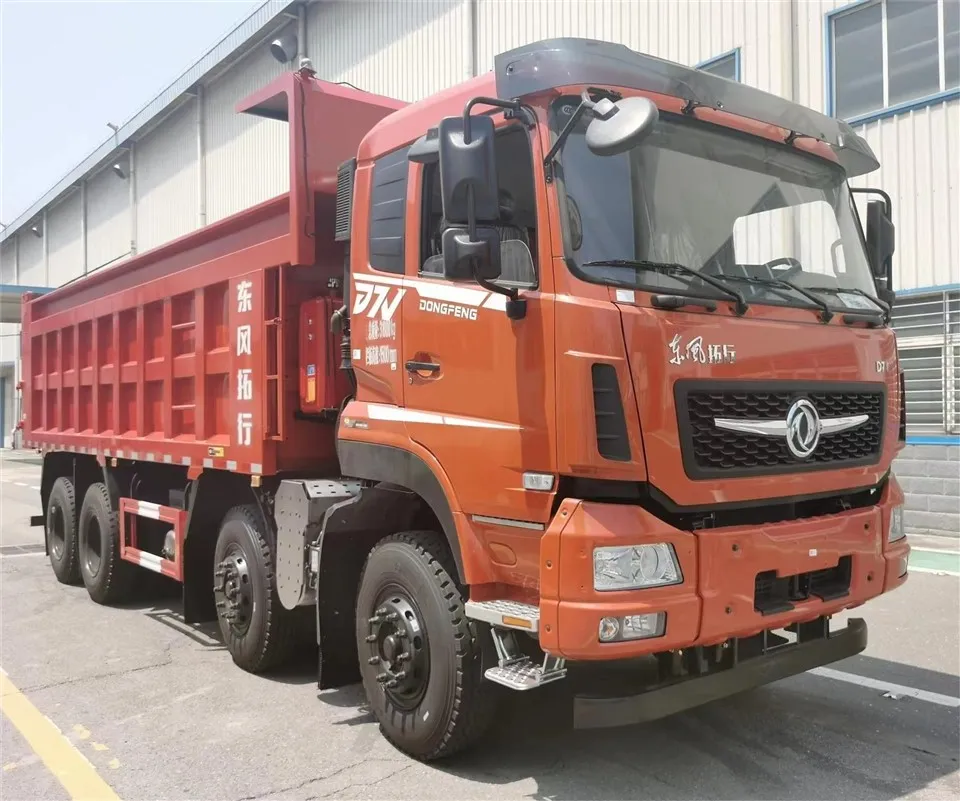

Pob tseg Truck 8 * 4
Cov khoom no muaj lub zog muaj zog, muaj zog load-bearing muaj peev xwm, passability zoo, thiab yog haum rau txhua yam ntawm txoj kev nto, kuj muaj ntau yam cav horsepower ntau yam xaiv los ntawm, thov tham nrog cov neeg siv khoom kom paub meej.
Xa kev nug
Khoom Taw qhia
| Qauv code | T348M-4 |
| Max Payload | 55 000 kg |
| Chassis Dimensions | |
| Chassis Dimensions (L * W * H) | 9150mm * 2550mm * 3100mm |
| Log puag | 2050+3200+1400 |
| Pem hauv ntej / rear log khiav | 1880mm / 1860mm |
| Pem hauv ntej / nram qab overhang | 1430 /1570 |
| tsheb luj | |
| G.V.W | 31 000 Kg |
| Ncua hnyav | 1270kg ib |
| Ncej profile Dimensions | |
| Ncej dav | 860 hli |
| Ntu qhov siab | 300 hli |
| Ntu thickness | 8mm +8 hli |
| Cav | |
| Hom | YC6MK420-33 |
| Emission theem | |
| Lub zog siab tshaj plaws | 250 Kw / 2300 rpm |
| Qhov siab tshaj plaws torque | 1460N.m/{1}}rpm |
| Tus naj npawb ntawm lub tog raj kheej | 6 |
| Kev khiav tawm | 9.839L |
| Lub tog raj kheej bore × Stroke | 123mm × 145 hli |
| Clutch | |
| Phaj txoj kab uas hla | φ430 hli |
| Kev khiav hauj lwm qhov system | Hydraulic tswj nrog cua booster, rub |
| Iav lub thawv | |
| Hom | 10 TSI 180T |
| Tus naj npawb ntawm lub zog | 10 pem hauv ntej iav & 2 thim rov qab |
| iav ratios | 15.53;12.08;9.39;7.33;5.73;4.46;3.48;2.71;2.1;1.64;1.28;1.00; r1=14.86;r2=3.33 |
| Qag | |
| Pem hauv ntej qag | Rigid stubaxle nrog ob chav T-cross, nruas nres |
| 2×7t | |
| rear qag | cam khwb cia steel qag tsev nyob, ib-theem txo qis qag, sib txawv xauv ntawm qag thiab log, ceev piv: 5.262. |
| 2×13t | |
| Kev ncua | |
| Pem hauv ntej ncua kev kawm ntawv | 9/9- Nplooj caij nplooj ntoos hlav nrog shock absorber |
| rear ncua kev kawm ntawv | 10- Nplooj caij nplooj ntoos hlav nrog stabilizer bar |
| Roj teeb | |
| Qhov hluav taws xob | 24V |
| Roj teeb muaj peev xwm | 165 hli (2) |
| Roj Tank | |
| Hom | Aluminium roj tank |
| Muaj peev xwm | 450L |
| Lwm tus | |
| Cab | KC ca sab saum toj ib leeg-chav cab, Mechanical full ntab, airbag vibration damping driver seat, manual hydraulic flip, electric glass lift, desert air filter, full car WABCO valve, automatic air conditioning. |
| Nres System | Tag nrho cov pa nres system, sib cais pneumatic Circuit Court; nres lub caij nplooj ntoos hlav nres ua haujlwm ntawm lub qag, nres nres |
| Log tsheb | 12. 00R20-18PR |
| Yam tsawg kawg nkaus tig lub voj voog | 12000 hli |
| Yam tsawg kawg nkaus hauv av clearance | 305mm ua |
| Kev tsav tsheb siab tshaj plaws | 70 km / h |
| Qhov siab tshaj plaws gradeability | Ntau dua lossis sib npaug li 30% |
| Roj noj | 45L / 100 Km |
| Reference qhov ntev ntawm cov tsheb thauj khoom | 6800\7200\7400\7800*2350*1500 B6D8 |
